CNC Angle Machine Line

CNC Angle Iron Steel Back Milling Machine Used For Steel Structure Construction Sector

The machine used for angle back milling, mainly in the field of angle steel tower industry, electric power fittings, and steel structure construction industry etc.

Steel Construction and Plates Press Brake CNC Angle Steel Bending and Heating Machine

This equipment is primarily utilized for the bending and forming of structural components, specifically engineered for angle steel bending and plate bending applications. It is essential for fabricating custom frames, supports, brackets, and other vital elements within the metalworking, construction, and heavy manufacturing industries. The machinery ensures precise angles and consistent curvature, meeting stringent quality and dimensional standards required for industrial projects.

9 Axes CNC Angle Line Machine For Drilling Stamping Of Large Dimension Angle Steel Up To 14m Length

This custom-engineered CNC angle steel punching production line is purpose-built for the drilling and stamping processes of large-dimension, high-strength angle steel”a core material dedicated to the fabrication of transmission line towers. The production line facilitates high-precision machining of all requisite holes on angle steel, delivering superior hole finish, precise positional accuracy, exceptional production efficiency, and cutting-edge automated functionality.

26*12 Max. Punching CNC Angle metal Punching Marking And Shearing Line 3 CNC Axes

This machine tool is primarily designed for the drilling of H-shaped steel. It utilizes three high-speed precision drilling spindles to perform drilling operations on workpieces, featuring high machining accuracy and user-friendly operation. As an indispensable high-efficiency equipment in the steel structure industry, it is widely applied in sectors such as construction, bridge engineering, tower masts, and grid structures.

Three-in-One CNC Punching Marking Cutting Line

It can be used for CNC machining of the web surface of channel steel, both sides of angle steel, and flat steel (which can be cut into arcs), including marking, punching, and shearing. It features high machining accuracy, fast punching speed, and high production efficiency. It can adapt to mass production of workpieces, as well as small-batch, multi-variety production when developing new products. Each stage has a push-button station for single-person loading and clamping operations.

14m Length Of Blank Cnc Angle Steel Metal Drilling Machine Line 18 Character In Each Group

The CNC angle drilling and marking machine line is designed for the drilling and stamping of large, high-strength angle steel used in transmission line towers. This system facilitates the precise drilling of all holes in the angle steel, ensuring superior hole quality and positional accuracy.

High Speed CNC Angle Drilling and Marking Machine Production Line for Steel Tower

It is primarily designed for drilling and stamping operations on large-size, high-strength angle steel used in transmission line towers. All required holes on the angle steel can be processed on this production line, which delivers superior hole quality, high positional accuracy, as well as exceptional production efficiency and automation levels.

High Speed CNC Punching Marking And Cutting Machine Line For Angle Bars

Angle size: 40x40x3125x125x10 mm Max. length of blank : 12m Max. length of finished : 10m Max. Punching (dia. x thi.) : 26x10 mm Punches per side: 2 Punching force: 630 kN Marking force : 630 kN Cutting force: 1000 kN

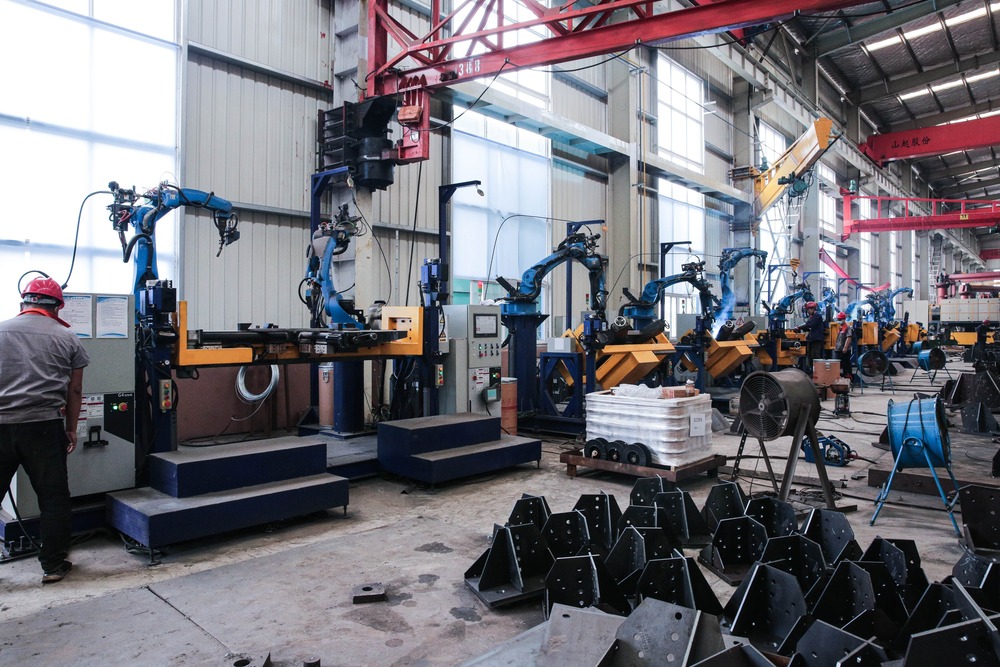

46m/Min Rotation Speed Tower Foot Welding Robot

This equipment is mainly used for welding the base of the tower. Apart from the reinforcement plates, it can complete the welding of 11 main weld seams of the main body, 1 cleaning seam weld, and the welding of the sealing head corner.

High Speed CNC Angle Punching Marking And Cutting Machine Line Model JNC125

Angle size: 40x40x3125x125x10 mm Max. length of blank : 12m Max. length of finished : 10m Max. Punching (dia. x thi.) : 26x10 mm (MaterialïïQ345 510N/mm2) Max. Punching elliptical hole (dia.x thi.): 22x50x8mm (Material:Q345 510N/mm2) Punches per side: 2 Punching force: 630 kN Marking force : 630 kN Cutting force: 1000 kN

40*40*3~160*160*16mm Angle Size CNC Steel Punching Cutting Machine 3000KN Cutting Force

JNC series high speed cnc angle punching, marking and cutting production line is mainly composed of punching unit, marking unit, cutting unit, transverse conveyor, rotating conveyor, feeding conveyor, unloading conveyor, CNC feeding carriage, hydraulic system, electrical system, pneumatic system and so on. This production line is mainly used for the automatic processing of angle steel in tower industry. The processing process is numerically-controlled and the operation is very convenient. It can realize the automatic, high-precision, multi-varieties and mass production.

Weld The Base Of Transmission Towers Use Cnc Tower Foot Welding Robot 2pcs Worktables

This equipment is primarily designed for welding the base of transmission towers. In addition to the reinforcement plates, it is capable of completing the welding of 11 primary seams on the main body, one seam for cleaning purposes, as well as the welding of the sealing head corners.

Power Tower Accessory Industry Use CNC Punching Marking Cutting Machine Line Model CJBNC1412 Servo for Metal Sheet Angle Steel

It can be used for CNC machining of the web surface of channel steel, both sides of angle steel, and flat steel (which can be cut into arcs), including marking, punching, and shearing. It features high machining accuracy, fast punching speed, and high production efficiency. It can adapt to mass production of workpieces, as well as small-batch, multi-variety production when developing new products. Each stage has a push-button station for single-person loading and clamping operations.

6 Axis Tower Foot CO2 Welding Robot Equipped With Laser Weld Seam Tracker

This equipment is primarily designed for welding the base of transmission towers. In addition to the reinforcement plates, it is capable of completing the welding of 11 primary seams on the main body, one seam for cleaning purposes, as well as the welding of the sealing head corners.

5~50ml/h Fuel Consumption CNC Angle Drilling And Marking Machine 1000KN Marking Force

This production line is primarily utilized for drilling and stamping operations on large-size, high-strength angle steel employed in transmission line towers. All required holes on the angle steel can be machined on this line, delivering superior hole quality, high positional accuracy, as well as excellent production efficiency and advanced automation capabilities.

Double Or Single Blade Cnc Steel Angle Cutting Punching Machine Line 80m/Min Feeding Speed

The JNC series high-speed CNC angle punching, marking, and cutting production line primarily comprises the punching unit, marking unit, cutting unit, transverse conveyor, rotary conveyor, feeding conveyor, unloading conveyor, CNC feeding carriage, hydraulic system, electrical system, pneumatic system, and other essential components. Specifically designed for the automated processing of angle steel in tower manufacturing, this production line operates with complete numerical control, ensuring user-friendly operation. It facilitates automated, high-precision, multi-variety, and large-scale production capabilities.

High Speed CNC Angle Punching Marking and Shearing Machine

Angle size: 40x40x3125x125x10 mm Max. length of blank : 12m Max. length of finished : 10m Max. Punching (dia. x thi.) : 26x10 mm (Material¼šQ345 510N/mm2) Max. Punching elliptical hole (dia.x thi.): 22x50x8mm (Material:Q345 510N/mm2) Punches per side: 2 Punching force: 630 kN Marking force : 630 kN Cutting force: 1000 kN

2 Punches Per Side Durable CNC Angle Line Machine 630Kn Punching And Marking Force

This machine is a specialized, industry-specific solution designed solely to perform angle steel punching, marking, and shearing tasks with exceptional accuracy.

High Oil Tank Pressure CNC Angle Bending And Heating Machine With 950mm Oil Tank Stroke

This CNC Heating Bending Equipment is specially designed and commissioned for the precision bending of angle steel profiles and flat metal sheets.

2000m/Min Cutting Speed Of Drill CNC Angle Steel Metal Drilling Machine 18 Character In Each Group

2000m/Min Cutting Speed Of Drill CNC Angle Steel Metal Drilling Machine 18 Character In Each Group

Metal Cutting Industry CNC Angle Steel Drilling and Marking Machine Tower Construction

The machine is specialized equipment designed for drilling and marking angle steel, primarily used in the angle steel tower industry.

Automatic High-Accuracy Angle Steel Punching Line for Power Transmission Tower CNC Shearing Machine Construction

JNC series high speed cnc angle punching, marking and cutting production line is mainly composed of punching unit, marking unit, cutting unit, transverse conveyor, rotating conveyor, feeding conveyor, unloading conveyor, CNC feeding carriage, hydraulic system, electrical system, pneumatic system and so on. This production line is mainly used for the automatic processing of angle steel in tower industry. The processing process is numerically-controlled and the operation is very convenient. It can realize the automatic, high-precision, multi-varieties and mass production.

Angle Steel Tower Industry CNC Punching Marking and Shearing Line Transmission Tower Manufacturing

The JNC series high-speed CNC angle punching, marking, and cutting production line primarily comprises the punching unit, marking unit, cutting unit, transverse conveyor, rotating conveyor, feeding conveyor, unloading conveyor, CNC feeding carriage, hydraulic system, electrical system, pneumatic system, and other essential components. Specifically designed for the automated processing of angle steel in tower manufacturing, this production line operates entirely under numerical control, offering user-friendly operation. It facilitates automated, high-precision, versatile, and large-scale production capabilities.

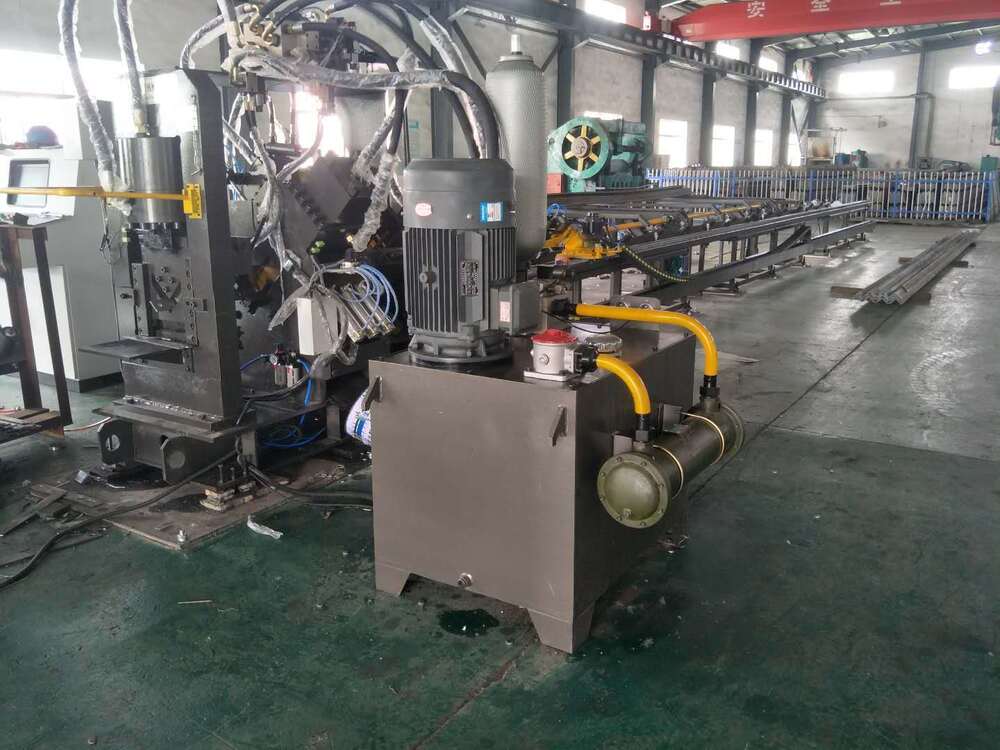

3 in 1 Power Hardware Industry Use CNC Punching Marking Cutting Machine Model JBC1010

Power Hardware Industry Use CNC Punching Marking Cutting Machine Model JBC1010

New CNC Angel Steel Punching Marking And Shearing Production Machine Line

This machine is a specialized piece of equipment engineered for angle steel punching, marking, and shearing operations within the angle steel tower sector.

CNC Angle Metal Steel Drilling Marking and Tapping 6000r/min Spindle Rotation Speed Machine Line

This equipment is primarily designed for drilling and stamping operations on large-size, high-strength angle steel used in transmission line towers. All holes required on the angle steel can be processed on this production line, which delivers high hole quality and precise position accuracy, along with excellent production efficiency and a high level of automation.

Cheap Price CNC Heating Bending Machine for Angle & Plate Model HQ250-700/HQ360-900

It is primarily designed for the bending of angle steel and plates.

100*100*10-360*360*35mm Angle Size CNC Drilling Line 200m/Min Max. Cutting Speed Of Drill

This equipment is primarily designed for the drilling and stamping of large-sized, high-strength angle steel used in transmission line towers. It enables the completion of all required hole-drilling processes for angle steel on a single production line, ensuring superior hole quality and precise positional accuracy. Additionally, it delivers high production efficiency and operates with a high level of automation.

JNC2020Q CNC Angle Punching Marking And Shearing Machine

JBC1010 CNC Punching Marking And Cutting Machine Line

Hydraulic Angle Notching Machine For Angle Steel Tower

High Speed CNC Angle Drilling And Marking Machine

CNC Angle Drilling And Marking Machine

High speed CNC Punching Marking and Shearing Line for Angles Model JNC125

It is the special equipment used for angle steel punching, marking and shearing in the field of angle steel tower industry.

Cheap Price CNC Angle Drilling And Marking Machine for Angle Steel Tower Industry

CNC Punching Steel Marking and Shearing Machine Line for Angles

Angle size: 40x40x3125x125x10 mm Max. length of blank : 12m Max. length of finished : 10m Max. Punching (dia. x thi.) : 26x10 mm (Material¼šQ345 510N/mm2) Max. Punching elliptical hole (dia.x thi.): 22x50x8mm (Material:Q345 510N/mm2) Punches per side: 2 Punching force: 630 kN Marking force : 630 kN Cutting force: 1000 kN

CNC Angle Drilling and Marking Machine Used in Angle Steel Tower Industry

It is mainly used for drilling and stamping large-size, high-strength angle steel in transmission line towers. All holes on angle steel can be drilled on this production line, with high hole quality and position accuracy, and high production efficiency and automation.

High Speed CNC Angle Punching Marking and Cutting Machine for Steel Tower Model JNC1010

Angle size (mm): 40*40*3 100*100*10 Max. Punching (Dia. * Thi.) (mm): 26*10 Punching force (kN): 630 Marking force (kN): 630 Cutting force (kN): 1000 Max. length of blank (m): 12 Max.length of finished (m): 10 Punches per side: 2 Group of marking letters: 4 Number of letters per group: 12 Character size(mm): 14*10*19 CNC axes: 3

CNC Punching Machine Angle Steel Marking and Shearing Punch Line for Steel Tower Model JNC1412

This machine is a specialized piece of equipment engineered for angle steel punching, marking, and shearing applications within the angle steel tower sector. The machine is primarily composed of a transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, punching unit, marking unit, cutting unit, unloading conveyor, as well as hydraulic, electrical, and pneumatic systems, among other components.

Industrial High-Speed CNC Angle Drilling And Marking Line ADM2532 for Steel Fabrication

It is primarily designed for drilling and stamping large-size, high-strength angle steel used in transmission line towers. All holes required on angle steel can be processed on this production line, featuring superior hole quality, high positional accuracy, as well as high production efficiency and automation levels.

Metal CNC Angle Hydraulic Shearing Marking Punching Product Machine Line for Steel Tower

This machine is primarily composed of a transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, punching unit, marking unit, cutting unit, unloading conveyor, as well as hydraulic, electrical, and pneumatic systems, among other components.

6000r/Min Spindle Rotation Speed CNC Angle Drilling And Marking Line BT40 Drilling Spindle

It is primarily designed for drilling and stamping large-size, high-strength angle steel utilized in transmission line towers. All holes required on the angle steel can be processed on this production line, which delivers superior hole quality, high positional accuracy, as well as high production efficiency and automation.

3 CNC Axes CNC Punching Marking and Shearing Line Single Blade Shearing

This machine is a specialized equipment designed for angle steel punching, marking, and shearing operations within the angle steel tower industry sector.

High Speed Automatic CNC Angle Steel Punching Machine CNC Punching And Shearing Angle Line

This machine is specialized equipment designed for angle steel punching, marking, and shearing applications within the angle steel tower industry.

5~50ml/H Fuel Consumption CNC Angle Drilling And Marking Machine 1000KN Marking Force

This machine is specialized equipment designed for angle steel punching, marking, and shearing operations within the angle steel tower industry.

950mm Oil Tank Stroke Model HQ360-900 CNC Plate Sheet Heating Bending Machine 4.2x4.5x4.1m Overall Size

This equipment is primarily designed for the precision bending of angle steel and flat plates. It delivers reliable performance in shaping these two key materials, catering to the processing needs of industries such as construction, machinery manufacturing, and metal structure fabrication.

Model ADM3635 CNC Angle Steel Table Drilling Marking Machine Line 9 CNC Axes

This cnc angle drill machine is primarily used for drilling and stamping large, high-strength angle steel in transmission line towers. All holes in angle steel can be drilled on this line, achieving high hole quality and positional accuracy, while also offering high production efficiency and a high degree of automation.

Substation Structure Manufacturing Automatic Cnc Angle Steel Punching Machine For Lattice Tower

This machine is a device that integrates punching, typing, and shearing for the angle steel, channel steel, and plate. One machine can finish three functions for three kinds of metal materials.

Angle/Flat/Channel Steel Use 3 in 1 CNC Punching Marking Cutting machine Line Model JBC1010

It is used for punching, marking and shearing on angle steel, flat steel and channel steel. It is mainly used for processing cross-arms, hoops, five-hole connecting plates, flat pads, and benches in electric power tower iron accessories. The machine can be used for punching, shearing and typing in one step without separate processing. High processing precision, high production efficiency, and can be processed by one person, simple and easy to learn.

Model QC200 Angle Back Milling Machine 63x5~200x20mm Angle Processing Size

The machine used for angle back milling, mainly in the field of angle steel tower industry, electric power fittings, and steel structure construction industry etc.

Model QC360 CNC Angle Back Milling Machine for Angle Steel Tower Industry

Mainly used to process the arc at the top of angle steel.

Model LC2412 CNC Laser Tube Cutting Machine Use The MAX6000 Laser Power

The laser tube cutting machine is primarily designed for processing a wide range of pipe and tubular materials, including ordinary carbon steel pipes, stainless steel pipes, aluminum alloy pipes, and copper pipes. It delivers high-precision cutting with smooth, burr-free edges, ensuring minimal thermal distortion and superior dimensional accuracy. The system supports complex cutting patterns, including angled cuts, notches, and holes, making it highly versatile for applications in metal fabrication, structural engineering, and industrial manufacturing. Its advanced laser technology allows for efficient, automated operation while maintaining consistent quality across multiple material types and thicknesses.
