Send InquiryHydraulic Angle Notching Machine For Angle Steel Tower
Price 95000 USD ($)/ Unit
MOQ : 1 Unit
Hydraulic Angle Notching Machine For Angle Steel Tower Specification
- Product Type
- Angle Notching Machine
- General Use
- Industrial
- Material
- Metal
- Automatic
- Yes
- Dimension (L*W*H)
- 1270×1020×1800 Millimeter (mm)
- Warranty
- Yes
Hydraulic Angle Notching Machine For Angle Steel Tower Trade Information
- Minimum Order Quantity
- 1 Unit
- Supply Ability
- 10 Units Per Day
- Delivery Time
- 30 Days
- Main Domestic Market
- All India
Hydraulic Angle Notching Machine For Angle Steel Tower About
Hydraulic Angle Notching Machine For Angle Steel Tower make hydraulic angle cutting and notching machine is mainly used for cutting angle process of angle steel, in the iron tower of the power transmissions and communications. Hydraulic Angle Notching Machine For Angle Steel Tower is used for cutting corners of angle steel. the machine with an opening c-type structure, and its cutting mould is the rectangular double-blade mode.
Specification
|
Model |
QJ140 |
QJ160 |
QJ200 Four column |
|
Functions |
Used for cutting corner of angles in steel tower industry |
||
|
Nominal pressure kN |
800 |
1000 |
1600 |
|
Stroke of oil cylinder mm |
50 |
50 |
50 |
|
Times of stroke min-1 |
20 to 25 |
20 to 25 |
20 to 25 |
|
Power of motor kW |
15 |
15 |
22 |
|
Throat depth mm |
325 |
325 |
Column without throat |
|
Scope of angles mm |
L40x40x3 to |
L40x40x3 to |
L40x40x3 to |
|
Rotary angles of corner cutting mould |
360degree manual |
||
|
Overall dimensions of corner cutting mould mm |
650x650x500 |
700x700x500 |
830x700x600 |
|
Overall dimensions LxWxH mm |
1270x1020x1800 |
1300x1020x1880 |
1370x1120x1900 |
Automated Precision Notching
The machine's fully automatic system minimizes manual labor and increases production accuracy. This feature is particularly important for angle steel towers needing exact notching for structural assembly, which reduces errors and accelerates workflow.
Robust Construction and Durability
Crafted from premium-grade metal, this hydraulic notching machine withstands rigorous industrial operations. Its sturdy build extends longevity and reduces downtime, making it a reliable workhorse for manufacturers and fabricators.
Global Distribution with Warranty
Manufactured in China and available globally, the machine is supplied with an industry-standard warranty. Distributors, exporters, and traders ensure reliable delivery and service, supporting businesses with prompt after-sales solutions.
FAQ's of Hydraulic Angle Notching Machine For Angle Steel Tower:
Q: How does the hydraulic angle notching machine operate automatically?
A: The machine uses a hydraulic system, programmed to automate the notching process. Once the angle steel is positioned, the machine executes precise cuts without manual intervention, resulting in accurate and repeatable results.Q: What materials are suitable for use with this notching machine?
A: Designed primarily for angle steel, the machine is versatile enough to handle various metal types used in tower fabrication, thanks to its durable all-metal construction.Q: When is this machine typically used in the manufacturing process?
A: It is utilized during the fabrication stage where precise notches are required on angle steel, crucial for assembling large-scale towers and industrial metal frameworks.Q: Where is the hydraulic angle notching machine most commonly installed?
A: The machine is ideal for installation in industrial settings such as fabrication workshops, steel structure plants, and manufacturing units focused on steel tower production.Q: What is the step-by-step process for using this machine?
A: Operators secure the angle steel in place, input the required cutting dimensions, and activate the machine. The automatic hydraulic system then executes the notching process swiftly and safely.Q: How does clients benefit from choosing this machine?
A: Users benefit from enhanced productivity, reduced labor costs, high-precision output, and the assurance of quality with a product backed by a reliable warranty and global distribution network.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in CNC Angle Machine Line Category
100*100*10-360*360*35mm Angle Size CNC Drilling Line 200m/Min Max. Cutting Speed Of Drill
Price 120000 USD ($) / Unit
Minimum Order Quantity : 1 Unit
Product Type : 100*100*10360*360*35mm Angle Size CNC Drilling Line 200m/Min Max. Cutting Speed Of Drill
Feature : Low Energy Consumption, High Speed, High Precision
Warranty : Yes
Material : Other, Steel, Mild Steel, Carbon Steel Angles
9 CNC Axes CNC Angle Steel Drilling & Marking Processing Line For Transmission Tower
Price 115000 USD ($) / Unit
Minimum Order Quantity : 1 Unit
Product Type : 9 CNC Axes CNC Angle Steel Drilling & Marking Processing Line For Transmission Tower
Feature : Low Energy Consumption, High Speed, High Precision
Warranty : Yes
Material : Other, Mild Steel, Alloy Steel, Angle Iron

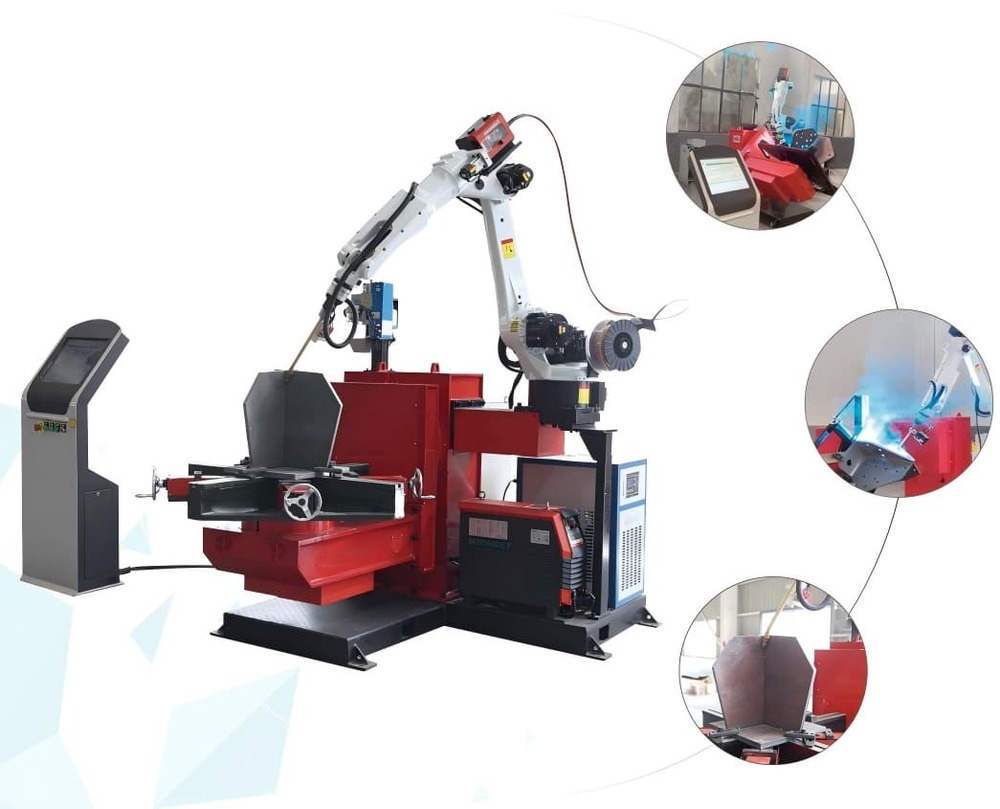

6 Axis Tower Foot CO2 Welding Robot Equipped With Laser Weld Seam Tracker
