High speed CNC Punching Marking and Shearing Line for Angles Model JNC125

Name: High speed CNC Punching Marking and Shearing Line for Angles Model JNC125
Brand: JINAN AUTEN MACHINERY CO.,LTD.
Price: 50000 USD
Availability: InStock

Price 50000 USD ($)/ Set

Get a Price/Quote

MOQ : 1 Set

High speed CNC Punching Marking and Shearing Line for Angles Model JNC125 Specification

Automatic
Yes

PLC Control
Yes

Bar Feeder
Yes

Power Source
Hydraulic

Voltage
415 Volt (v)

Motor
AC Motor

High speed CNC Punching Marking and Shearing Line for Angles Model JNC125 Trade Information

Minimum Order Quantity
1 Set

Supply Ability
300 Sets Per Year

Delivery Time
30 Days

Main Domestic Market
All India

High speed CNC Punching Marking and Shearing Line for Angles Model JNC125 About

Applicable Industry:

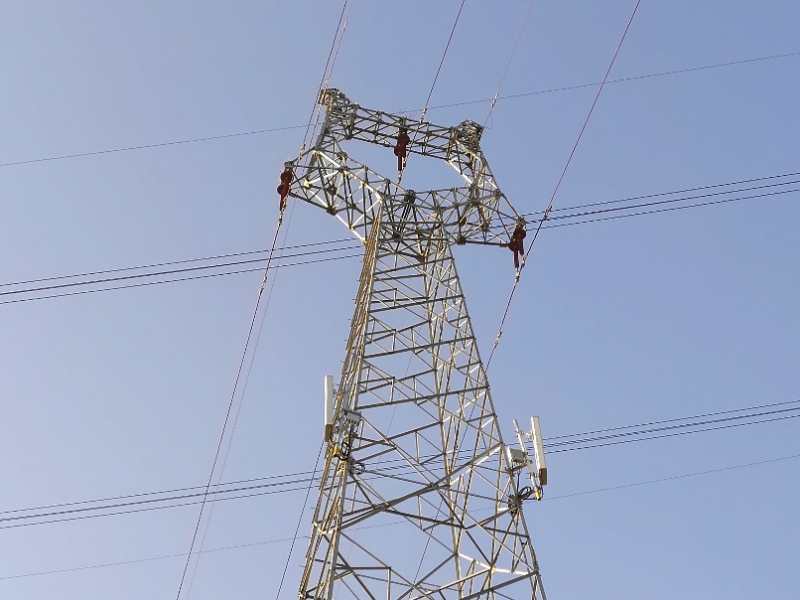

This machine is used for angle steel marking, punching, and shearing mainly in the field of angle steel tower industry, electric power fittings, structure storage facilities, and steel structure construction industries etc.

Product Feature:

1. Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision. Key hydraulic, pneumatic and electric parts all imported.

2.Easy programming, adopt instruction programming and lofting software. It can read .NC1 files generated by TEKLA software.

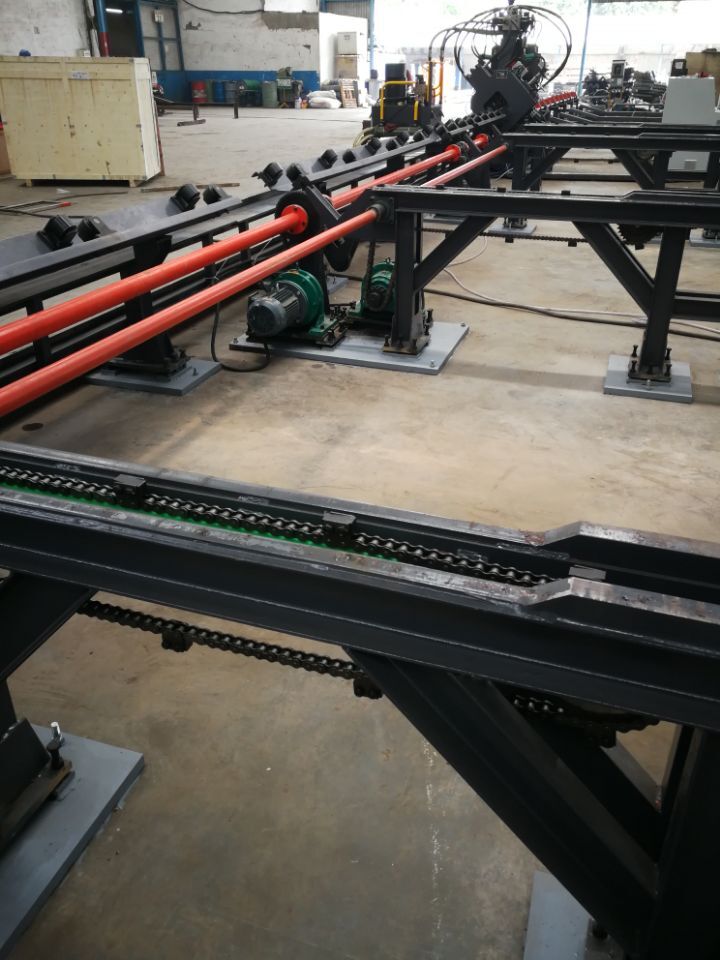

3. CNC infeed carriage is driven by servo motor. The photoelectric encoder feeds back the information. Closed loop control to ensure high positioning precision.

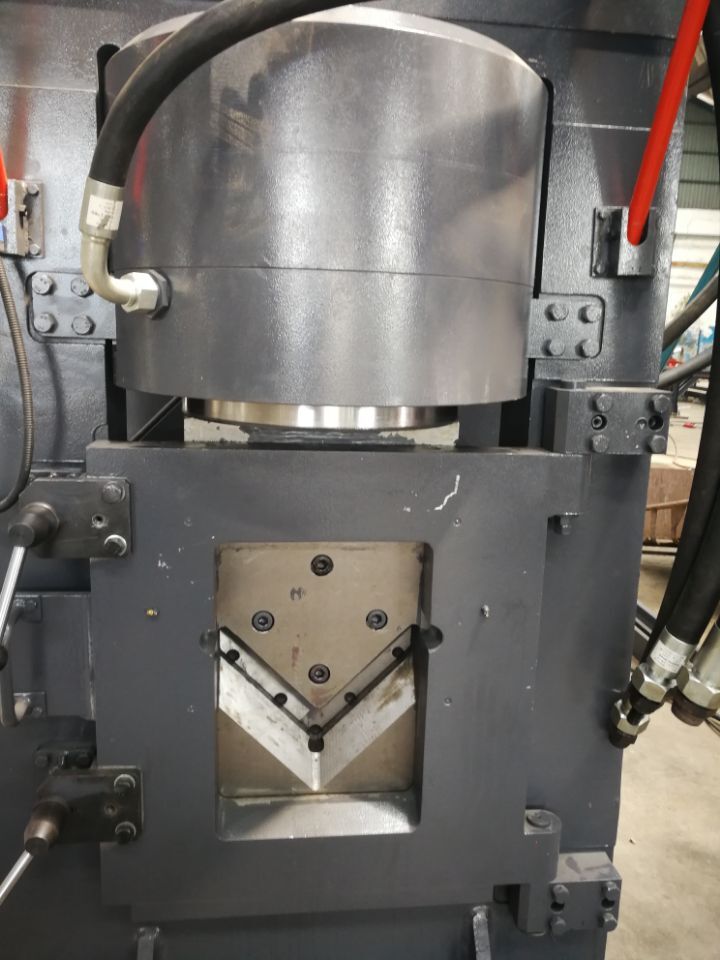

4. All marking, punching and shearing in automatic completeness, all finished angles can be unloaded by pneumatic turnover device so as to lighten the working strength.

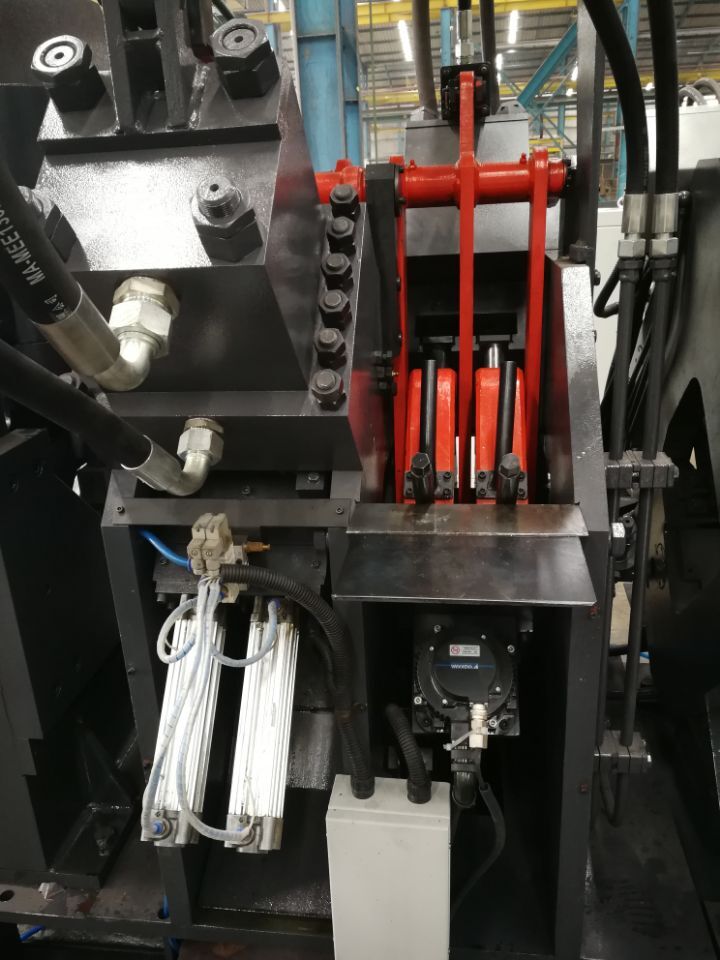

5. Marking unit adopts closed frame with good rigidity. Four groups of character boxes are fixed on the marking unit which can be selected by program. Marking back mark can be set at will.

Product Description

.jpg

Model	JNC1010	JNC1412	JNC2020
Angle size (mm)	40403- 10010010	40403- 14014012	50504- 20020020
Max. Punching (Dia. * Thi.) (mm)	26*10	26*12	26*20
Punching force (kN)	630	630/1000	1000/1200
Marking force (kN)	630	630/900/1200
Cutting force (kN)	1000	900/1800	1540/4300
Max. length of blank (m)	12	12	14
Max.length of finished (m)	10	12	14
Punches per side	2	2 or 3	3
Group of marking letters	4	4	4
Number of letters per group	12
Character size(mm)	141019
CNC axes	3
Cutting mode	Single Blade	Double Blade or Single Blade
Feeding speed of angle(m/min)	80	80	60
Processing precision	Accordance with GB2694
Programming mode	Input by keyboard,USB interface
Overall dimension (m)	About 286.52.2	About 296.52.2	About 3272.35

Efficient Automated Processing

The JNC125 boasts a fully automatic system driven by advanced PLC controls and hydraulic power. Its automated bar feeder streamlines material input, reducing manual labor and increasing overall operational speed. Designed for consistent, high-precision results, this line is ideal for large-batch production environments.

Precision and Flexibility

Equipped with dual AC motors and sophisticated control systems, the JNC125 excels in both punching and marking tasks. The flexibility of its CNC operation allows for intricate and varied patterns, making it a valuable tool for a wide range of structural applications.

FAQ's of High speed CNC Punching Marking and Shearing Line for Angles Model JNC125:

Q: How does the JNC125 CNC Punching Marking and Shearing Line operate?

A: The JNC125 utilizes dual AC motors, PLC control, and hydraulic power to automatically punch, mark, and shear angle steel. It operates via programmed instructions, ensuring rapid and precise processing with minimal operator input.

Q: What materials can this machine process and what is its main usage?

A: The JNC125 is designed specifically for processing angle steel bars. Its main use is in industries requiring precise punching, marking, and shearing, such as construction, power transmission, and manufacturing sectors.

Q: When should I consider using the JNC125 for my production line?

A: Consider using the JNC125 when you need high-volume, accurate, and rapid punching, marking, and shearing of angle steel components, particularly for infrastructure or large-scale fabrication projects.

Q: Where is the JNC125 manufactured and available for purchase?

A: The JNC125 is manufactured in China and is available globally through distributors, exporters, manufacturers, suppliers, and traders. You can procure it for international or domestic operations.

Q: What is the installation process for the JNC125 CNC line?

A: Installation involves connecting the machine to a 415 Volt power source, setting up the hydraulic system, and configuring the PLC controls. Manufacturers and suppliers typically provide on-site installation guidance and initial training.

Q: How is the PLC control system used in this machine?

A: The advanced PLC system manages and automates all machine operations, from material feeding to precision punching and marking. It allows for easy setup of processing parameters, job sequences, and monitoring of real-time performance.

Q: What are the key benefits of using the JNC125 model?

A: Key advantages include enhanced efficiency, high precision, reduced manual labor, and seamless automation. The integrated feeder and automatic controls help minimize downtime, resulting in substantial productivity gains for your operation.

Tell us about your requirement
