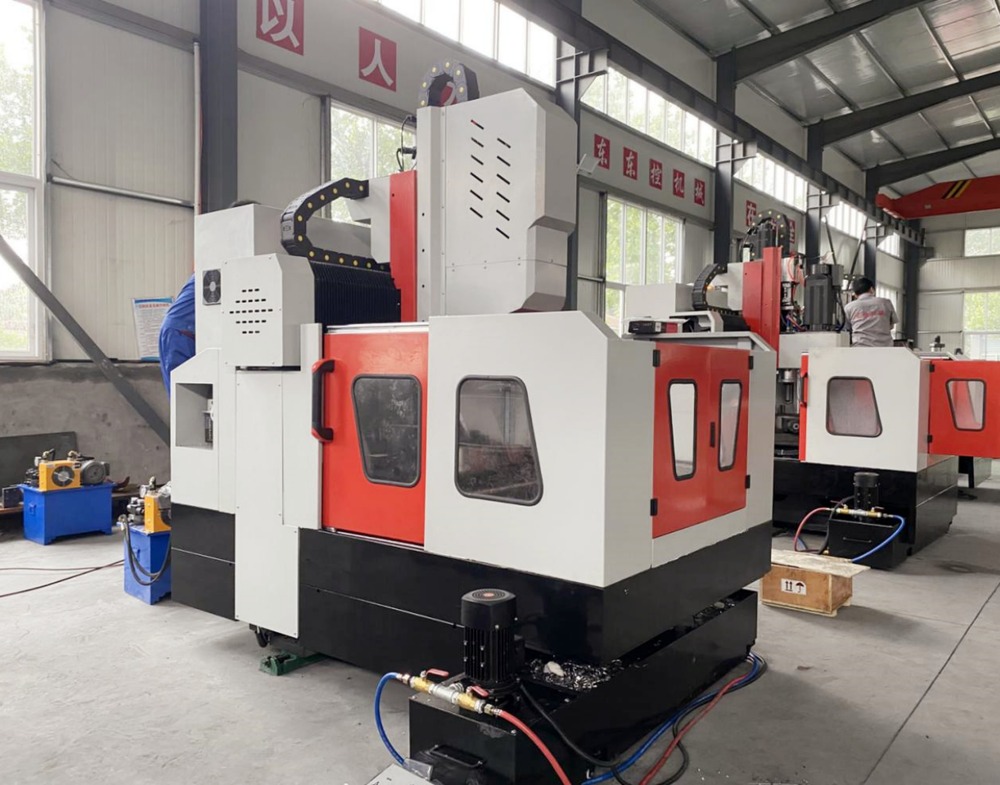

Send InquiryModel PHD1010 Fixed Worktable CNC Drilling Milling Tapping Machine 180mm Drill Thickness
Price 30000 USD ($)/ Unit
MOQ : 1 Unit
Model PHD1010 Fixed Worktable CNC Drilling Milling Tapping Machine 180mm Drill Thickness Specification
- Product Type
- Model PHD1010 Fixed Worktable CNC Drilling Milling Tapping Machine 180mm Drill Thickness
- Automatic
- No
- PLC Control
- Yes
- Power Source
- Hydraulic
- Feature
- Low Energy Consumption, High Speed, High Precision
- Warranty
- Yes
Model PHD1010 Fixed Worktable CNC Drilling Milling Tapping Machine 180mm Drill Thickness Trade Information
- Minimum Order Quantity
- 1 Unit
- Supply Ability
- 10 Units Per Day
- Delivery Time
- 30 Days
About Model PHD1010 Fixed Worktable CNC Drilling Milling Tapping Machine 180mm Drill Thickness
Product Features
1. The machine frame and crossbeam are fabricated from welded steel structures and undergo comprehensive aging heat treatment to ensure high precision. The worktable, transverse sliding table, and ram are constructed from cast iron, providing enhanced durability and structural stability.
2. The dual servo drive system on both sides of the X-axis ensures precise and synchronized movement of the gantry, maintaining excellent squareness between the Y and X axes.
3. The worktable is manufactured from cast iron, ensuring stable and dependable performance.
4. The drilling spindle is a rigid, high-precision BT40 type, equipped with an internal cooling system for efficient operation and convenient tool changes. The spindle operates at speeds ranging from 30 to 3000 rpm.
5. Two plate-chain type scrap removal systems are installed on either side of the worktable. These systems collect both scrap and coolant, enabling efficient recycling of the cooling fluid.
Robust Hydraulic Power Source
Equipped with a hydraulic power source, the PHD1010 ensures consistent force and smooth operation during drilling, milling, and tapping processes. This leads to improved productivity and reduced maintenance, making it ideal for high-volume manufacturing environments.
Cutting-Edge PLC Control System
The integration of a PLC control system provides precise automation, enhancing repeatability and accuracy for intricate machining tasks. This feature also simplifies operation, minimizing human error and maximizing efficiency for operators.
Energy Efficiency and High Performance
The machine is designed to consume less energy while delivering high speed and precision, making it both cost-effective and environmentally friendly. These key benefits position the PHD1010 as a preferred choice for industries prioritizing operational savings and quality output.
FAQ's of Model PHD1010 Fixed Worktable CNC Drilling Milling Tapping Machine 180mm Drill Thickness:
Q: How does the fixed worktable design of the PHD1010 contribute to machining accuracy?
A: The fixed worktable provides a stable platform for the CNC machine, reducing vibrations and movement during operation. This enhances overall machining precision, which is crucial for high-accuracy drilling, milling, and tapping tasks.Q: What are the primary benefits of using a hydraulic power source in this CNC machine?
A: Hydraulic power ensures steady and reliable force, resulting in smoother operations, less downtime, and increased machine life. It also aids in handling heavy-duty materials and thick workpieces up to 180mm.Q: When is the PHD1010 most suitable for deployment in production lines?
A: The PHD1010 is ideal for high-volume production lines that require fast turnaround and consistent quality without manual intervention. Its automation and repeatability are especially valuable when precise, repetitive machining is required.Q: Where can the PHD1010 machine be sourced for international markets?
A: This CNC machine is available for international markets through channels such as distributors, exporters, manufacturers, suppliers, and traders from China, ensuring global accessibility and support.Q: What is the process for operating the PHD1010 with PLC control?
A: Operators start by programming the required parameters into the PLC system. The machine then automatically carries out the drilling, milling, and tapping processes, reducing manual involvement and increasing output consistency.Q: How does the PHD1010's low energy consumption benefit manufacturers?
A: Low energy consumption translates to reduced operational costs, helping manufacturers achieve greater profitability while also lowering their environmental impact.
