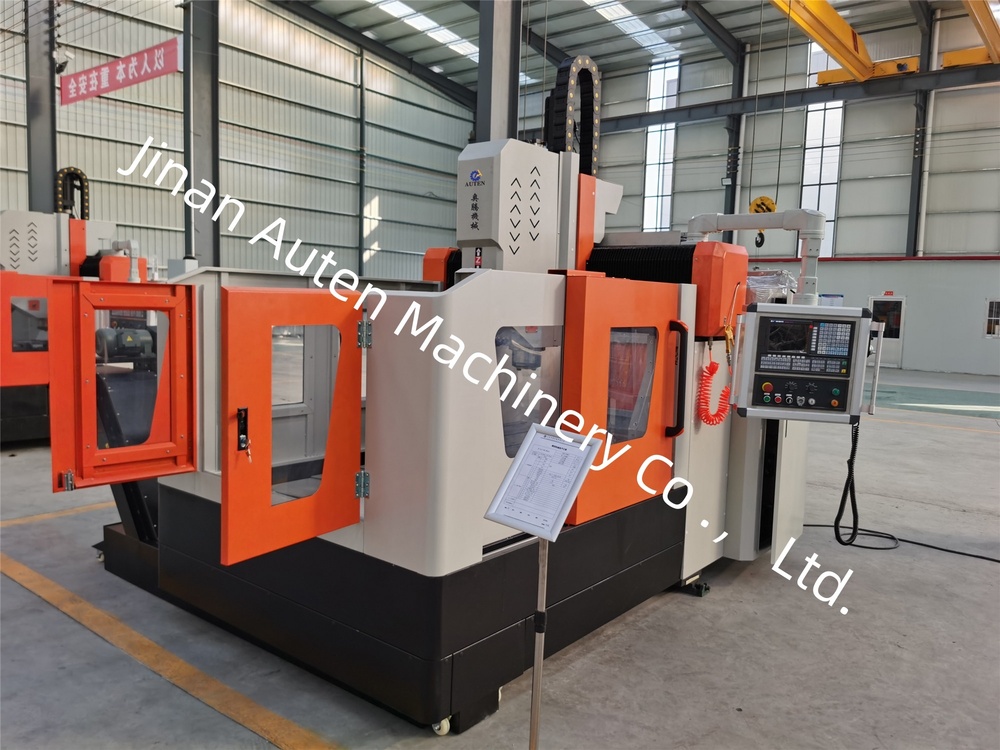

Send InquiryHigh Speed CNC Plate Drilling and Milling Machine Model PHD1010
Price 28000 USD ($)/ Unit
MOQ : 1 Unit
High Speed CNC Plate Drilling and Milling Machine Model PHD1010 Specification
- Product Type
- High Speed CNC Plate Drilling and Milling Machine Model PHD1010
- General Use
- Drilling and Milling of Steel Plates, Flanges, Structural Components
- Material
- Carbon Steel, Alloy Steel, Stainless Steel
- Type
- CNC Drilling Milling Machine
- Capacity
- Up to 50 mm Drilling Diameter
- Weight (kg)
- 3850 kg
- Computerized
- Yes
- Automatic
- Fully Automatic
- PLC Control
- Yes
- Bar Feeder
- Automatic
- Power Source
- Electric
- Power Consumption
- 8 kW
- Rigidity
- High
- Voltage
- 380V / 415V
- Motor
- Servo Motor 5.5 kW
- Table Size
- 1000 x 1000 mm
- Spindle Speed
- 50-3000 rpm
- Axial Choice
- X, Y, Z Axis with Linear Guideways
- Dimension (L*W*H)
- 2300 x 2500 x 2800 mm
- Feature
- Low Energy Consumption, High Speed
- Color
- Blue & White
- Warranty
- Yes
- Repositioning Accuracy
- ±0.03 mm
- Positioning Accuracy
- ±0.05 mm
- Travel (X/Y/Z)
- 1000 x 1000 x 200 mm
- Coolant System
- Yes
- Tool Magazine Capacity
- 16 Tools
- Clamping Type
- Hydraulic
- Max Workpiece Weight
- 1500 kg
- CNC System
- Siemens / Fanuc / GSK (User Option)
- Spindle Taper
- BT40
- Max Drilling Diameter
- 50 mm
High Speed CNC Plate Drilling and Milling Machine Model PHD1010 Trade Information
- Minimum Order Quantity
- 1 Unit
- Supply Ability
- 10 Units Per Day
- Delivery Time
- 30 Days
High Speed CNC Plate Drilling and Milling Machine Model PHD1010 About
Specificationsi14
|
Workpiece size |
LxW |
1000x1000 mm |
|
Gantry height |
600 mm |
|
|
Drilling power head |
Qty. |
1 |
|
Spindle taper |
BT50 |
|
|
Max.drilling diamter |
I60 mm |
|
|
Max.thickness |
180 mm |
|
|
Tapping diameter |
M3-M20 |
|
|
Spindle speed |
303000 r/min |
|
|
Servo spindle motor power |
11kW |
|
|
Distance from the lower end of the spindle to the worktable |
200-600mm |
|
|
Lateral movement of power head (X axis) |
Max.horizontal stroke |
1000 mm |
|
Lateral movement speed |
09 r/min |
|
|
Servo motor power for lateral movement |
10N/M |
|
|
Gantry longitudinal movement (Y axis) |
Max. feed stroke |
1000 mm |
|
Feed moving speed |
09 m/min |
|
|
Feed servo motor power |
15N/M |
|
|
Vertical ram feed motion (Z axis) |
Max. stroke |
400 mm |
|
Moving speed |
08 m/min |
|
|
Servo motor power |
1x15N/M (Brake) |
|
|
Three-axis positioning accuracy |
X/Y/Z/A/B/C |
0-0.02mm |
|
Three-axis repeat positioning accuracy |
X/Y/Z/A/B/C |
0-0.01mm |
|
Machine weight |
/ |
About 5T |
|
Overall size |
LxWxH |
3200x2200x2200 mm |
Precision and Versatility in Every Cut
The PHD1010 offers exceptional drilling and milling accuracy, thanks to linear guideways on all axes and a servo-motor-driven spindle. It supports demanding operations on carbon, alloy, and stainless steels with a maximum drilling capacity of 50 mm. This model is ideal for fabrication shops, manufacturing plants, and heavy industries that require both precision and high throughput.
Efficient Automation and User-Friendly Operation
A fully automatic bar feeder and PLC control enable seamless workflow with minimal supervision. The 16-tool magazine allows quick tool changes, while the color-coded, compact design fits seamlessly into modern workshops. Choose from Siemens, Fanuc, or GSK CNC systems for operational flexibility, ensuring the PHD1010 integrates easily into existing production lines.
FAQ's of High Speed CNC Plate Drilling and Milling Machine Model PHD1010:
Q: How does the PHD1010 CNC Plate Drilling and Milling Machine achieve high positioning accuracy?
A: The PHD1010 uses advanced linear guideways and a precision servo motor system, providing a positioning accuracy of 0.05 mm and a repositioning accuracy of 0.03 mm. This ensures precise drilling and milling results even on complex steel components.Q: What types of materials can this machine process effectively?
A: This machine is tailored for drilling and milling carbon steel, alloy steel, and stainless steel plates, flanges, and similar structural components. Its robust spindle and tooling options ensure efficient performance across a diverse range of metal materials.Q: When is it best to use the hydraulic clamping system?
A: The hydraulic clamping system should be engaged whenever stable, secure workpiece fixation is required. This is crucial for high-speed operations or machining heavy workpieces up to 1500 kg, ensuring safety and consistent machining accuracy.Q: Where can the PHD1010 be installed and utilized?
A: The PHD1010 is suitable for installation in fabrication shops, production plants, and metalworking factories that handle large steel plates and structures. Its compact design and three-phase electric requirement makes it easily integrable into most industrial environments.Q: What is the process for switching between different tools?
A: The machine employs a 16-tool automatic magazine, enabling fast, automated tool changes during operation. Tool selection and switching are managed via the chosen CNC system, reducing downtime and maximizing productivity.Q: How does the coolant system benefit the machining process?
A: The built-in coolant system keeps the tool and workpiece at optimal temperatures, reducing heat-induced wear and prolonging tool life. This ensures smoother cutting, improved surface finish, and minimized risk of thermal deformation.Q: What advantages does the fully automatic bar feeder offer?
A: The automatic bar feeder streamlines workpiece loading and feeding, minimizing manual intervention. This enables continuous, unattended machining cycles, enhancing productivity and operator safety while supporting high-volume production.
