CNC Sieve Plate Drilling Machine 13pcs Vertical Sliding Ram Drilling Power Head

CNC Sieve Plate Drilling Machine 13pcs Vertical Sliding Ram Drilling Power Head About

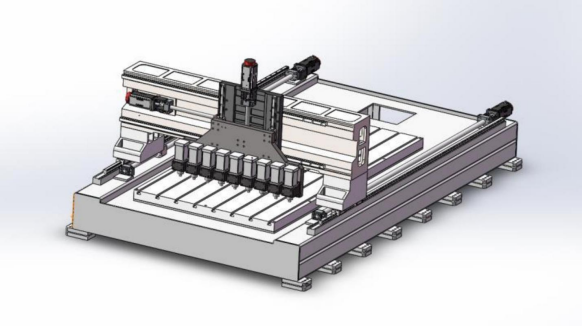

Machine Structure:

The machine is mainly composed of a worktable, movable gantry, movable saddle, multiple drilling power heads, automatic lubrication system, protective devices, circulating cooling system, CNC control system, and electrical system. The axes are supported and guided by rolling linear guideways and driven by precision ball screw assemblies, providing excellent positioning accuracy and repeatability.

1. Automatic Lubrication and Protective Devices:

The machine is equipped with a Taiwan-manufactured volumetric pressure-distribution automatic lubrication system, which automatically supplies lubricant to critical moving components, including guideways, lead screws, and gears, ensuring comprehensive lubrication without dead zones and effectively extending the service life of the machine. Dust-proof protective covers are installed on the X- and Y-axis assemblies, while splash-resistant protective baffles are arranged around the worktable to enhance operational protection.

2. Integrated Keyuan Bus Absolute CNC System

The equipment adopts a dedicated Keyuan CNC system developed for CNC drilling and milling applications. The drive system utilizes high-precision absolute servo motors to achieve accurate and reliable motion control. The system is equipped with an RS232 communication interface, color display, Chinese-language operating interface, and support for local and external USB data input, providing convenient program management and data transfer.

3. Power-Failure Memory Function

In the event of an unexpected power interruption or other operational stoppage, the power-failure memory function enables the operator to quickly identify and restore the machining position corresponding to the last completed hole. This feature reduces position-recovery time and allows production to resume efficiently from the appropriate machining point.

4. Laser Interferometer:

A RENISHAW laser interferometer from the United Kingdom is utilized for precision machine calibration. It accurately measures and compensates for pitch errors, backlash, positioning accuracy, and repeatability, thereby maintaining the machine's dynamic and static performance as well as overall machining precision. Ballbar Inspection: Each machine is inspected using a RENISHAW ballbar system from the United Kingdom to evaluate circularity and geometric accuracy. Circular interpolation cutting tests are also conducted to verify three-dimensional machining accuracy and circularity performance, ensuring consistent machine quality and reliable precision in practical applications.

Superior Precision and Customization

The machine's outstanding 0.02mm positioning accuracy and high rigidity structure make it suitable for complex drilling projects. With up to 13 power heads operating simultaneously and adjustable spindle speeds (1000-4500 RPM), this CNC solution delivers tailored performance for various plate materials and thicknesses. Customizable table sizes, drilling diameters, and plate dimensions offer adaptability for a wide range of industrial demands.


Efficient Operation and Intuitive Control

Operators benefit from the integrated touch screen display for seamless job setup and monitoring. Data can be input via USB or network, and programming supports both G-code and custom macros, allowing flexibility for different production workflows. Efficiency is enhanced by options like hydraulic or pneumatic clamping, manual or auto tool change, and simple maintenance due to the integrated water cooling system.


Durability, Safety, and Energy Savings

Built with a high-rigidity frame and energy-conscious design, the machine typically consumes only 5-8 kW while supporting multi-sheet parallel drilling. Safety is prioritized via emergency stop and overload protection features. The servo-driven motors and reliable PLC control ensure longevity, precision, and robustness for continuous industrial use.
