Model 2215ER20 Gantry CNC Sieve Plate Machine 2200*1500mm Workpiece Size

Model 2215ER20 Gantry CNC Sieve Plate Machine 2200*1500mm Workpiece Size About

1. Automatic Lubrication and Protective Devices:

This machine tool is equipped with a Taiwanese-made volumetric pressure-distributing automatic lubrication device, which can automatically lubricate all moving parts such as guideways, lead screws, and gears, leaving no blind spots and ensuring the machine tool's service life. The X and Y axes are equipped with dustproof protective covers, and the worktable is surrounded by splash-proof baffles.

2. Complete Keyuan Bus Absolute Value CNC System

This is a dedicated system for Keyuan CNC drilling and milling machines. The motors are driven by high-precision absolute value servo motors. It features an RS232 interface, a color display screen, a Chinese operating interface, and supports on-site/external USB input.

3. Power-Off Memory Function

In the event of a sudden power outage or other operational interruption, this function allows for quick and convenient retrieval of the location of the last hole drilled before the power failure. Operators can then proceed to the next step quickly, saving search time.

4. Laser Interferometer:

A laser interferometer from the UK's RENISHAW company is used for calibration, precisely inspecting and compensating for pitch error, backlash, positioning accuracy, and repeatability to ensure the machine's dynamic and static stability and machining accuracy. Ballbar Inspection: Each machine is inspected using a ballbar from the UK's RENISHAW company to calibrate true circularity and machine geometric accuracy, and simultaneously conducts circular cutting experiments to ensure the machine's 3D machining accuracy and circularity accuracy.

Exceptional Accuracy and Performance

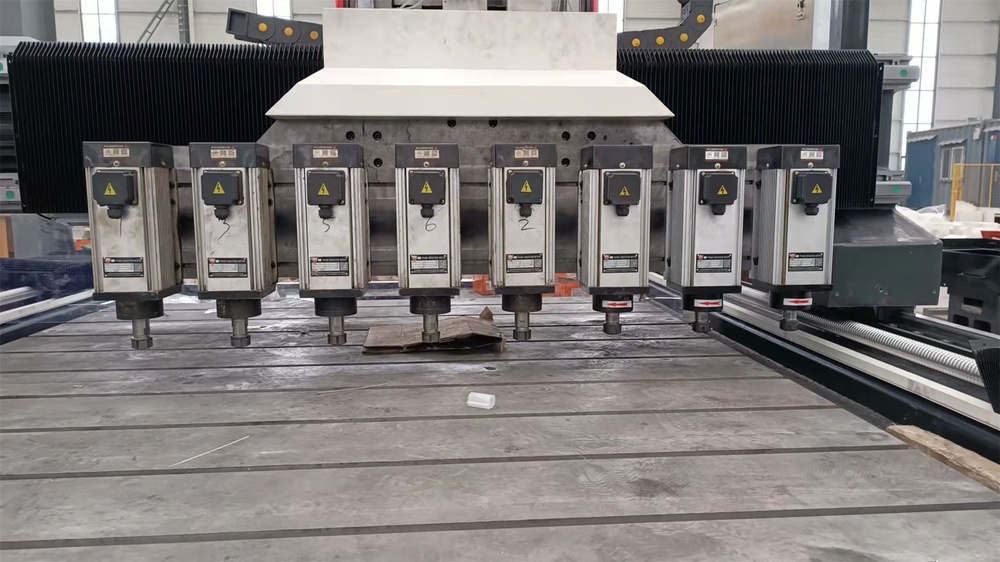

Achieving a repositioning accuracy of 0.03 mm, the Model 2215ER20 excels in producing intricately drilled and milled sieve plates for industrial applications. Its eight ER20 spindles, paired with an advanced CNC controller and high-efficiency cooling, deliver consistently reliable performance across steel, aluminum, and composites.


Efficient Clamping and Versatility

Users can select between vacuum or mechanical clamping systems to best suit their material and process needs, facilitating secure handling during heavy-duty, multi-workpiece operations. The machine accommodates a wide range of sheet sizes and thicknesses up to 250 mm in height.


Smart Automation with Superior Control

Fully computerized and programmable, this gantry CNC machine supports G-code and is compatible with popular CAM software. The automatic lubrication and advanced safety features ensure minimal downtime and optimal operator protection throughout the manufacturing process.
