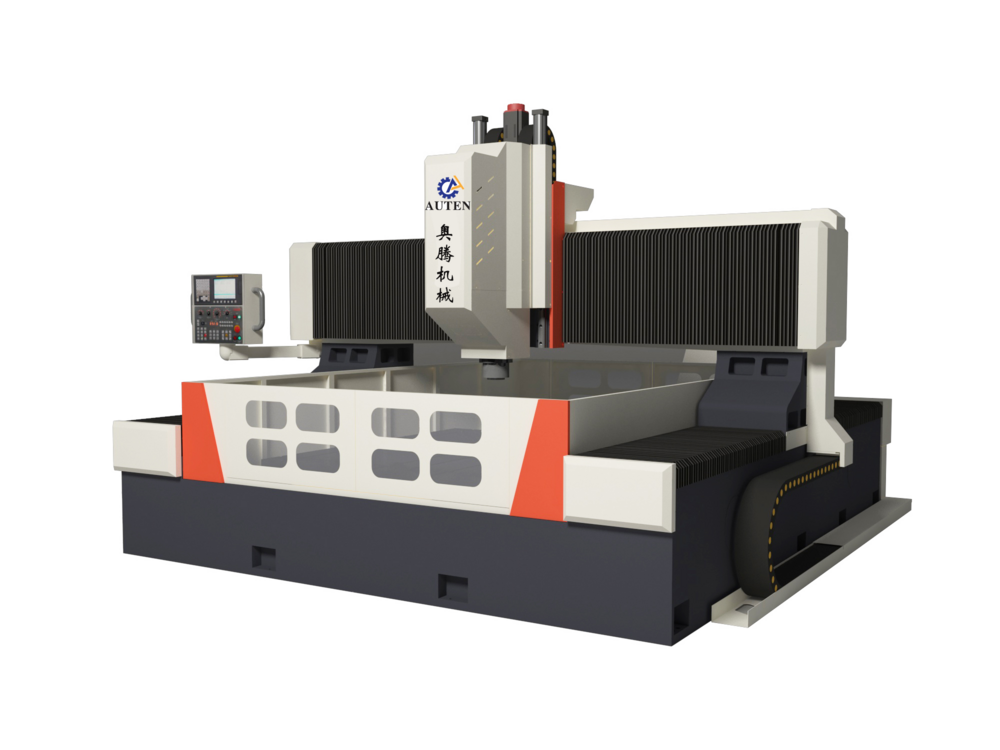

High Accuracy Automatic Gantry Steel Metal Plate CNC Drilling Machine Model PHD3030

About High Accuracy Automatic Gantry Steel Metal Plate CNC Drilling Machine Model PHD3030

Drilling power headi14The drilling power head adopts a dedicated servo spindle motor, and the geared synchronous belt decelerates to increase the torque to drive the precision spindle. The spindle adopts the first three rear two five-row Japanese angular contact bearings to achieve stepless speed change. The spindle is equipped with a pneumatic tool change system to enable tool replacement Fast and convenient, the feed is driven by a servo motor and a ball screw. The X and Y axes can be linked, using semi-closed loop control, which can realize linear and circular interpolation functions. The spindle end is a BT50 taper hole, equipped with Italian Rotofors high-speed rotary joint, and can use high-speed U-drilling center to discharge water.

Automatic lubrication device and protective devicei14Equipped with Taiwan's original volumetric partial pressure automatic lubrication device, it can automatically lubricate various motion pairs such as guide rails, screws, racks, etc., without dead angles, and ensure the service life of the machine tool. The X-axis and Y-axis of the machine tool are equipped with dust-proof protective covers, and splash-proof baffles are installed around the workbench.

Energy-Efficient High-Speed Drilling

The PHD3030 CNC Drilling Machine operates with low energy consumption while maintaining high speeds, significantly reducing operating costs for manufacturers. Its robust electric power source contributes to consistent performance and adaptability for various steel plate sizes and thicknesses. This balance between speed and efficiency makes it a preferred choice for facilities focused on both productivity and sustainability.


Unmatched Precision and Reliability

Equipped with advanced control systems, the PHD3030 delivers high-precision drilling, ensuring accurate hole placement and superior finish in metal plates. This precision minimizes errors, material waste, and the need for secondary finishing, making your manufacturing process more efficient. With warranty-backed reliability and comprehensive support from Chinese distributors, exporters, and suppliers, the machine adds valuable assurance to your operations.
