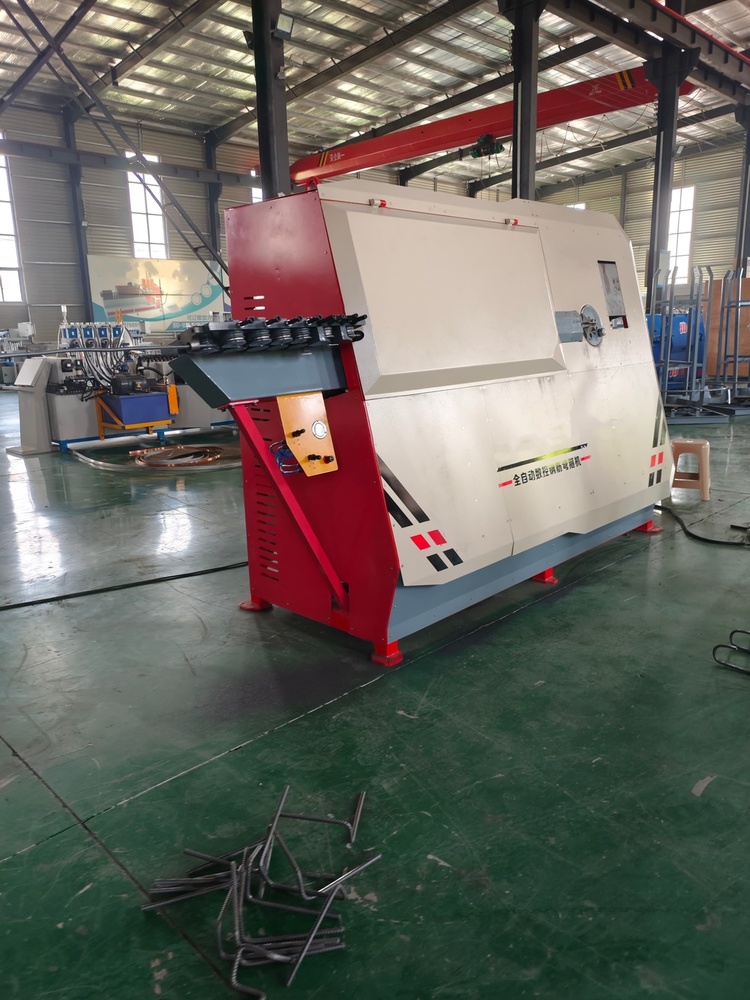

Model FF80 CNC Flat Steel Clamp Machine With Hydraulic System And Servo Control Technology

Name: Model FF80 CNC Flat Steel Clamp Machine With Hydraulic System And Servo Control Technology
Brand: JINAN AUTEN MACHINERY CO.,LTD.
Price: 16000 USD
Availability: InStock

Price 16000 USD ($)/ Unit

Get a Price/Quote

MOQ : 1 Unit

Model FF80 CNC Flat Steel Clamp Machine With Hydraulic System And Servo Control Technology Specification

Type
Model FF80 CNC Flat Steel Clamp Machine With Hydraulic System And Servo Control Technology

Material
High-grade Steel and Industrial Components

Capacity
Up to 80mm width flat steel (Model FF80)

Computerized
Yes, Servo Control Technology

Automatic Grade
Fully Automatic

Control System
PLC with Touchscreen Interface

Rolling Speed
Adjustable, up to 40 m/min

Cutting System
Hydraulic Shearing System

Cutting Thickness
Up to 8mm

Voltage
380V / 415V, 50/60Hz, 3-Phase

Color
White and Red

Dimension (L*W*H)
3200mm x 1200mm x 1650mm

Weight
Approximately 2.2 Tons

Warranty
Yes

Operating System
Windows-Based Interface

Oil Tank Capacity
110L

Packaging Type
Plastic Film Packing with Wooden Case for Export

Safety Features
Emergency Stop, Safety Guards, Overload Protection

Input Material Size
Width 30-80mm, Thickness 3-8mm

Cutting Accuracy
0.5mm

Production Application
For steel fabrication, reinforcement, and flat bar processing

Operating Environment
Industrial Workshop

Noise Level
75 dB

Power Consumption
12 kW

Cooling Type
Air Cooling for Hydraulic System

Clamping Type
Hydraulic Clamp

After-Sales Service
Online Support, Spare Parts Supply

Main Drive
Servo Motor Drive

Model FF80 CNC Flat Steel Clamp Machine With Hydraulic System And Servo Control Technology Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
15 Units Per Day

Delivery Time
30 Days

Model FF80 CNC Flat Steel Clamp Machine With Hydraulic System And Servo Control Technology About

Technical advantages:

THE PUNCHING SYSTEM

The system securely clamps the raw material and performs a series of sequential operations, including punching, cutting, and forming, to achieve efficient and continuous processing.

CONTROL PANEL

The intelligent control interface is designed for simple and convenient operation, with memory capacity for storing more than 500 graphic programs, enabling efficient access and management of frequently used processing patterns.

BENDING SYSTEM

The bending center shaft can be replaced with different models according to specific processing requirements. The system enables one-time forming, providing an efficient and convenient solution for producing customized components.

Precision Servo Control & Automation

The Model FF80 CNC Flat Steel Clamp Machine is powered by a state-of-the-art servo motor drive system and full PLC automation, ensuring precise, repeatable clamping and cutting operations. The intuitive Windows-based touchscreen interface makes setup and operation straightforward for industrial users, reducing manual intervention and the risk of error.

Hydraulic Clamping & Robust Safety Measures

Equipped with a hydraulic clamping mechanism, the FF80 secures materials firmly during processing to guarantee clean, accurate cuts. The machine prioritizes operator safety with emergency stops, safety guards, and overload protection, making it compliant for busy workshop environments.

Adaptability & Efficient Cooling

Constructed from high-grade steel, the FF80 accommodates flat steel widths between 30mm to 80mm and thicknesses of 3mm to 8mm. Its air-cooled hydraulic system efficiently dissipates heat, ensuring reliable performance during continuous production. The machine's adjustable rolling speed allows users to fine-tune output for different fabrication requirements.

FAQ's of Model FF80 CNC Flat Steel Clamp Machine With Hydraulic System And Servo Control Technology:

Q: How does the Model FF80 CNC Flat Steel Clamp Machine enhance production efficiency?

A: The FF80 features servo control technology and a hydraulic shearing system, enabling automatic, high-speed processing of flat steel up to 80mm wide. Its adjustable rolling speed and computerized PLC touchscreen system reduce manual intervention and increase throughput while maintaining cutting precision.

Q: What safety features are included in the Model FF80 CNC Flat Steel Clamp Machine for operators?

A: This model is equipped with critical safety features such as emergency stop buttons, safety guards, and overload protection. These mechanisms ensure a secure working environment, minimizing the risk of accidents during operation in industrial workshops.

Q: When is the Model FF80 machine most suitable for use?

A: The FF80 is designed for use in demanding steel fabrication, reinforcement, and flat bar processing applications, commonly found in industrial workshop environments where precision and productivity are essential.

Q: Where can the Model FF80 be installed and operated?

A: The FF80 is intended for installation in commercial or industrial workshops with a compatible 380V or 415V three-phase power supply. Its robust build and air-cooled hydraulic system make it suitable even for continuous, high-volume operations.

Q: What is the process flow for operating the Model FF80 CNC machine?

A: Operators input the steel material (30-80mm wide, 3-8mm thick), set the required parameters using the touchscreen interface, secure the material with the hydraulic clamp, and initiate automatic cutting cycles. The system ensures each stage is monitored for accuracy and safety.

Q: How does the FF80 machine benefit manufacturing businesses?

A: With fully automatic control, high cutting accuracy (0.5mm), and robust after-sales support, the FF80 minimizes downtime, reduces scrap, and ensures consistent quality for steel products. Efficient packaging and export readiness make it a strategic investment for manufacturers and exporters.
