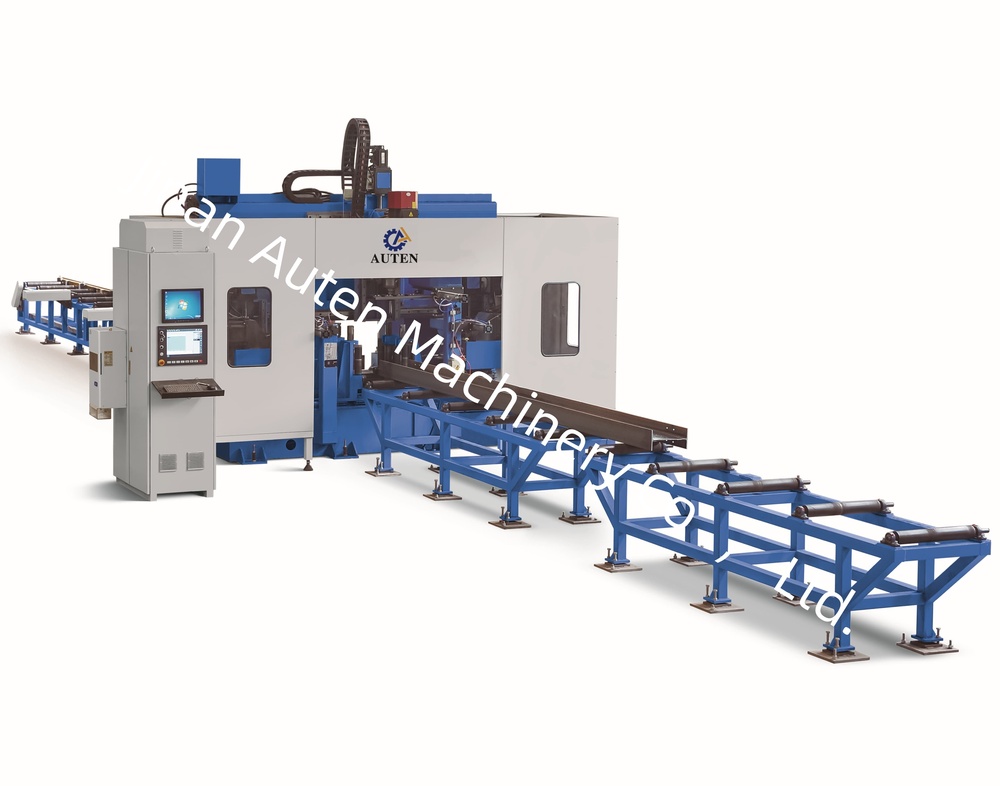

Gantry Type CNC H Beam Drilling Machine Line

Name: Gantry Type CNC H Beam Drilling Machine Line
Brand: JINAN AUTEN MACHINERY CO.,LTD.
Price: 50000 INR
Availability: InStock

Price 50000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Gantry Type CNC H Beam Drilling Machine Line Specification

Product Type
Gantry Type CNC H Beam Drilling Machine Line

General Use
Industrial

Material
Metal

Automatic
Yes

Power Source
Electric

Dimension (L*W*H)
17000mm x 8600mm x 4620mm Millimeter (mm)

Feature
Low Energy Consumption

Warranty
Yes

Gantry Type CNC H Beam Drilling Machine Line Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Day

Delivery Time
30 Days

Gantry Type CNC H Beam Drilling Machine Line About

Gantry Type CNC H Beam Drilling Machine Line is a machining process that utilizes a rotating cutting tool to produce round holes in a stationary workpiece. The holes are typically made to accommodate machine screws or bolts for assembly purposes. However, they can be used for aesthetic purposes depending on the design of the component. Gantry Type CNC H Beam Drilling Machine Line can detect the thickness of the beams and will automatically retract when the drill goes all the way through. It automatically changes quick feeding to drilling feeding speed when the Drilling bit touches the H beam.

Market: Worldwide

Specification

H-Beam	1000 x 400 mm to 2000 x 1000 mm
Channel	1000 x 400 mm to 2000 x 1000 mm
Box-Beam & Column Beam	1000 x 400 mm to 2000 x 1000 mm
Max. Length of Workpiece	12,000 mm
Max. Loading Capacity	3 tons/m, total 35 Tons/whole worktable

Drilling Unit

No. of Drilling Spindle	3 (Left + Right + Top)
Drilling Diameter	12.5 to 50 mm
Thread Tapping	4
Motor Power of Drilling Spindle	5.5 kW x 3
Spindle Feeding Stoke	Y1 axis: 1000mm A axis: 600mm (horizontal) Y2 axis: 1000mm B axis: 600mm (horizontal) Z axis: 2000mm C axis: 600mm (vertical)
Spindle Y & Z movement	Yes
Feed	CNC feeding; 0 to 10 m/min (vertical to H-beam)
Drilling Tools & Tool Lube Model	Coated Drill Bit with mist spray cooling Or Carbide Drill Bit with inner cooling
Spindle rpm (servo)	Stepless 120 to 560 rpm
Profile Height Measuring	Included
Profile Width Measuring	Included
Layout Point Marking (not drilling through)	Available (for welding purpose)

Gantry System

Moving Speed	0 to 10m/min
Drive Model	Double side servo + Gear
Structure	Square Pipe + Plate HF welded

Control System

Type	Computer + Mitsubishi PLC + Modules
Importing Software	AUTOCAD (.dxf), TEKLA, X-STEEL (.nc1, dstv)
Manual Programming	Available

Hydraulic System (for tool changing and side push aligning)

Hydraulic Motor Power	5.5 kW
System Inner Working Pressure	75 bar
Flux	40 L/min.
Hydraulic Tank Content	140 L
Hydraulic oil N0.	46

Scraps Removal System

Motor Power	1.5 kW
Type	Chain and Plate recycling moving type
Speed	10/min
No. of scraps removal system	2sets

Machine overall info

Dimension (L x W x H)	L 17000mm x W 8600mm x H 4620mm
Total Weight	Around 50 Tons
Total Power	40 kW

High-Efficiency Automation for Modern Fabricators

This CNC H Beam Drilling Machine Line features advanced automatic controls, reducing manual intervention and streamlining the drilling process. Thanks to its large operational dimensions and energy-efficient design, it can handle extensive drilling tasks with minimal resource consumption. Ideal for fabricators aiming to maximize production capacity with consistent accuracy.

Robust Construction Meets Versatile Application

Engineered primarily from durable metal, this Gantry Type machine is built to withstand rigorous industrial environments. Its versatility supports a range of steelwork applications, including bridge, shipbuilding, and construction sectors, ensuring long-term functionality even in demanding usage scenarios.

FAQ's of Gantry Type CNC H Beam Drilling Machine Line:

Q: How does the automatic functionality of the Gantry Type CNC H Beam Drilling Machine improve productivity?

A: The machine's automatic controls streamline the entire drilling process for H beams, reducing manual labor and minimizing errors. This boosts production speed and ensures uniform results during high-volume industrial operations.

Q: What is the primary application of this CNC H Beam Drilling Machine Line?

A: This machine is mainly used in industrial settings for efficient and precise drilling of H beams, making it essential in sectors like steel fabrication, construction, and shipbuilding.

Q: When should I consider using this machine in my production process?

A: If your facility requires accurate, repeatable drilling of large steel beams at scale-especially when managing multiple projects simultaneously-integrating this automated machine is highly beneficial.

Q: Where can I purchase or install the Gantry Type CNC H Beam Drilling Machine?

A: You can acquire this machine through authorized distributors, exporters, manufacturers, suppliers, or traders in China. Installation assistance and warranty support are typically provided by these sources.

Q: What is the process for maintaining this CNC drilling machine?

A: Regular maintenance involves checking the electric components, lubrication of moving parts, and routine inspection of the metal framework to ensure longevity and consistent performance.

Q: How does this model benefit my industrial operation compared to manual alternatives?

A: This machine offers precise, automated drilling with far greater efficiency and lower energy consumption than manual systems, leading to increased productivity and reduced operational costs over time.
