Flexible Processing CNC Plate Punching Machine Truck Beam Stringer CNC Plate Punching Production Machine Line

Send Inquiry

Request To Call Back

Flexible Processing CNC Plate Punching Machine Truck Beam Stringer CNC Plate Punching Production Machine Line

Name: Flexible Processing CNC Plate Punching Machine Truck Beam Stringer CNC Plate Punching Production Machine Line
Brand: JINAN AUTEN MACHINERY CO.,LTD.

Price 300000 USD ($)/ Unit

Get a Price/Quote

MOQ : 1 Unit

Flexible Processing CNC Plate Punching Machine Truck Beam Stringer CNC Plate Punching Production Machine Line Specification

Product Type
Flexible Processing CNC Plate Punching Machine Truck Beam Stringer CNC Plate Punching Production Machine Line

General Use
Plate Punching and Processing for Truck/Beam/Stringer Production

Material
Mild Steel, Stainless Steel, Aluminum

Type
CNC Plate Punching Machine Line

Capacity
Punching Force up to 1000 kN

Weight (kg)
Approx. 10000 kg

Computerized
Yes

Automatic
Fully Automatic Operation

PLC Control
Yes

Bar Feeder
Automatic Bar Feeder Included

Power Source
Electric

Power Consumption
Approx. 35 kW

Rigidity
Heavy Duty Welded Frame

Voltage
380V / 415V 3 Phase

Motor
Main Motor 15 kW

Table Size
3200 x 800 mm

Spindle Speed
Variable, 2000-6000 RPM (Optional)

Axial Choice
X, Y, Z Axes CNC Controlled

Dimension (L*W*H)
Approx. 6500 x 2500 x 2200 mm

Feature
Flexible Processing, High Punch Accuracy, Multi-Task Operation

Color
Blue and Grey

Warranty
Yes

Speed
Max. 60 strokes/minute

Punching Thickness Range
Up to 20 mm

Tool Magazine
Multi-Tool Auto Index

Hydraulic System
High-Pressure Hydraulic Unit with Cooling

Safety Features
Interlock Doors, Emergency Stops

Noise Level
75 dB

Software Compatibility
Compatible with AutoCAD DXF, NC Code

Lubrication System
Centralized Automatic Lubrication

Positioning Accuracy
0.1 mm

Punch Tool Types
Round, Oblong, Custom Shapes Supported

Control System
Industrial Grade CNC Controller

Max Sheet Size
3000 x 800 mm

Operating Temperature
0C - 40C

Production Application
Truck Beams, Stringers, Heavy Plate Components

Flexible Processing CNC Plate Punching Machine Truck Beam Stringer CNC Plate Punching Production Machine Line Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Day

Delivery Time
30 Days

About Flexible Processing CNC Plate Punching Machine Truck Beam Stringer CNC Plate Punching Production Machine Line

Discover a hot deal on the acclaimed Flexible Processing CNC Plate Punching Machine Truck Beam Stringer CNC Plate Punching Production Machine Line-an exquisite choice for grand manufacturing needs. Capitalise on its marvelous capacity: punch mild steel, stainless steel, or aluminum plates up to 20mm thick, with stunning position accuracy of 0.1mm and speeds reaching 60 strokes/min. Designed for heavy-duty applications, this robust, fully automatic line boasts a high-pressure hydraulic system, multi-tool auto index, and industrial CNC control. Ensure flawless, efficient production of truck beams, stringers, and complex plate components with unmatched versatility, safety, and compatibility.

Superior Application Flexibility and Usage

The Flexible Processing CNC Plate Punching Machine delivers remarkable performance for diverse production needs including truck beams, stringers, and heavy-duty plate components. Its advanced CNC control system enables precise punching across a range of application media-mild steel, stainless steel, and aluminum-facilitating multi-task operations. Ideal for industrial-scale, automatic usage, the machine's intelligent programming and flexible tool support make it the go-to solution for high-accuracy, automated sheet metal production, ensuring exceptional results on longitudinal beams and custom profiles.

Order Processing, Handover, and Packaging Details

Secure your investment with a clear proposal amount and streamlined order processing. Upon confirmation, order handover is accompanied by comprehensive support and a sample, if required. Each Flexible Processing CNC Plate Punching Machine is expertly packaged to ensure grand protection during shipment. Detailed documentation and prompt updates accompany every phase, providing transparency and peace of mind from initial agreement to the final handover at your facility. Flexible payment terms are available to meet the specific needs of distributors, manufacturers, and industry partners.

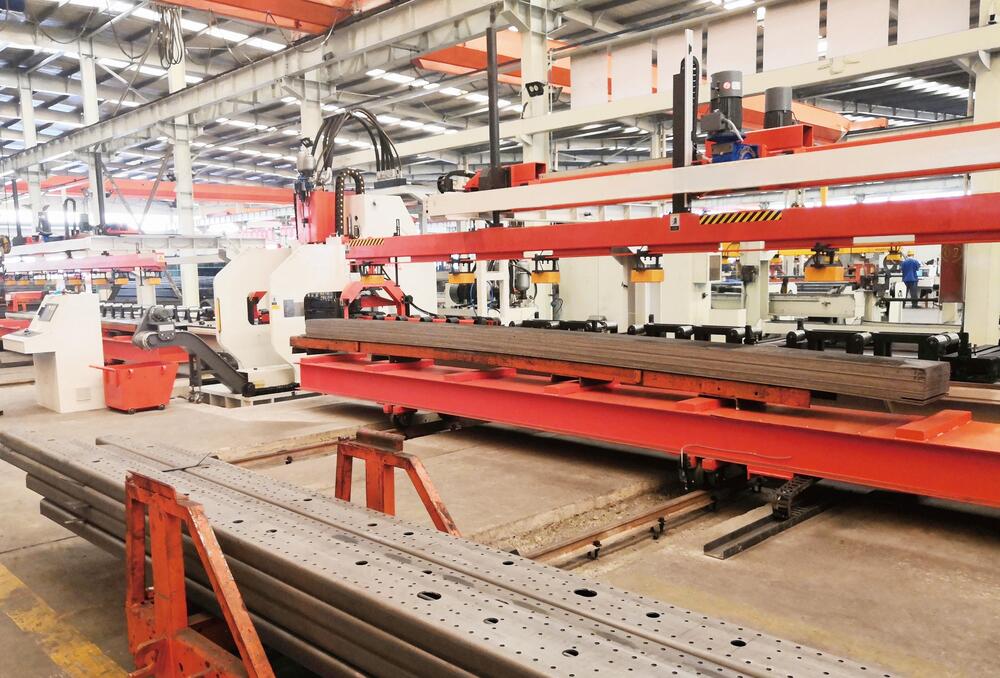

Main parameters of processing longitudinal beams
Processing material data	Plate thickness mm	4-9mm
	Material tensile strength (Mpa)	Max 750
	Workpiece length (mm)	4000-12000
	Piece width (mm)	250-600
	Workpiece camber (mm)	7/12M
	Workpiece roughness X(mm)	8/1M 20/12M
	Workpiece roughness Y(mm)	5mm
Equipment performance parameters and main technical indicators table
Nominal force	120Tons
Machine stroke X	12000mm
Machine stroke Y	600mm
Feeding speed X	50m/min
Feeding speed Y	30m/min
Hole pitch accuracy X	0.25mm/200mm 0.35mm/400mm 0.50mm/12000mm
Hole pitch accuracy Y (mm)	0.3
Diagonal accuracy of rectangular grouped holes	0.4 mm/300 mm
Modules	25
Max. machining aperture (mm)	I60 (within the nominal force range of the machine tool)
Number of molds	1 set

FAQ's of Flexible Processing CNC Plate Punching Machine Truck Beam Stringer CNC Plate Punching Production Machine Line:

Q: How does the CNC Plate Punching Machine ensure high accuracy during processing?

A: The machine utilizes an industrial-grade CNC controller combined with precision hydraulic and servo systems, achieving positioning accuracy of 0.1 mm and detailed hole pitch accuracy in both X and Y axes for consistent, high-quality results.

Q: What types of media and materials can be processed with this machine?

A: It is designed for mild steel, stainless steel, and aluminum plates, supporting a wide sheet range up to 20 mm thick. With customized punch tools, it can accommodate round, oblong, and custom shapes for versatile industrial applications.

Q: When can I expect order handover and does the machine come with a warranty?

A: Order handover occurs after finalizing the proposal amount and completing order processing, with flexible payment terms available. Yes, every machine is provided with a manufacturer's warranty for assured performance and support.

Q: Where can I use this CNC plate punching line most effectively?

A: It is especially effective for production lines manufacturing truck beams, stringers, and heavy plate components-ideal for automotive, heavy equipment, and structural engineering industries requiring accuracy and durability.

Q: What steps are involved in starting the machine for the first time?

A: The machine arrives with centralized automatic lubrication and complete safety systems pre-installed. Initial setup involves connection to a three-phase power source, loading of your AutoCAD DXF or NC code files, and configuration on the CNC controller, making start-up intuitive and efficient.

Q: How can I benefit from its automatic features and multiple task capability?

A: Fully automatic operation, an automatic bar feeder, and multi-tool auto index magazine reduce manual intervention and downtime, optimizing productivity while maintaining precise results on every plate and profile processed.
