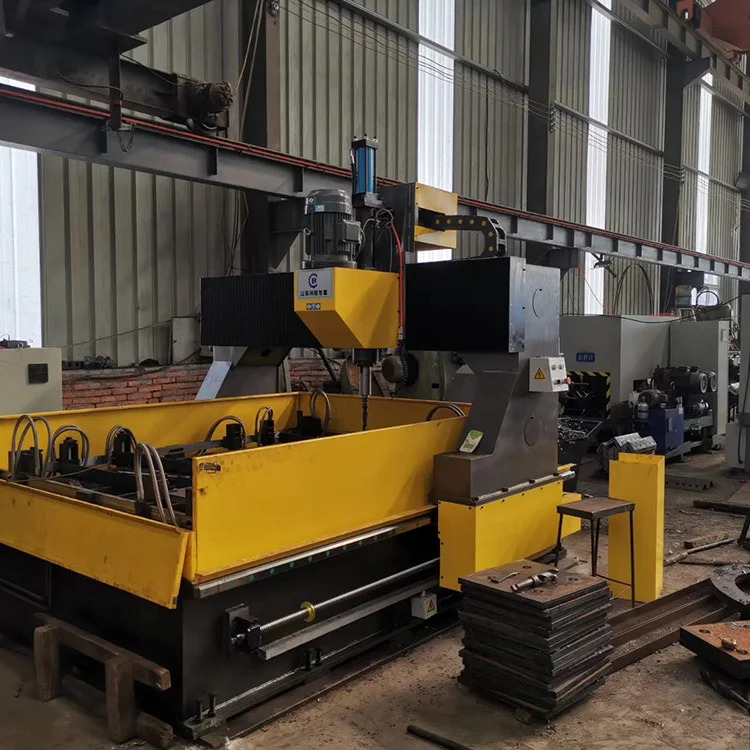

Automatic CNC Plate Tube and Flange Plane Drilling Machine

Price 29000 USD ($)/ Unit

Get a Price/Quote

MOQ : 1 Unit

Automatic CNC Plate Tube and Flange Plane Drilling Machine Specification

Product Type
Automatic CNC Plate Tube and Flange Plane Drilling Machine

Power Source
Electric

Feature
Low Energy Consumption, High Speed, High Precision

Warranty
Yes

Automatic CNC Plate Tube and Flange Plane Drilling Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Day

Delivery Time
30 Days

About Automatic CNC Plate Tube and Flange Plane Drilling Machine

1. The machine can clamp 4 work-pieces at the same time.

2. Chip removal automatically, cooling liquid recycling used.

3. Drilling head has stroke self-controlled function, it can automatically convert from fast feeding to normal feeding without setting the thickness of work-piece and the length of the drilling head.

4. Electrical control adopts upper computer plus PLC control, direct conversion of CAD/CAM. It also can process NC file which generated by TEKLA.

Specificationsi14

Model			PZ2012	PZ2016	PZ3016
Max size of work piece(mm)	one piece		20001000	20001600	30001600
	two piece		10001000	16001000	16001500
	four piece		1000500	800500	1500800
Max.			100mm, can overlap processing for thinner plates
Morse taper			#4
Max. drilling diameter			I50mm
Drilling spindle	Rotating speed(rpm)		120i14560( Stepless speed adjustment)
	Max. feed stroke(mm)		350
	Motor power(kW)		5.5
	No. of champs		12
Motor power(kW)	Servo motors	X axis	1.3
		Y axis	1.3
		Z axis	0.85
Weight(t)			About 5.3	About 6.3	About 7
Overall dimensions(LWH)(m)			About 4.5x2.2x2.8	About 4.5x2.6x2.8	About 5.5x2.6x2.8

High Performance and Reliability

This CNC Drilling Machine combines robust engineering with advanced automation, ensuring high speed and precision. Users benefit from reduced energy consumption without compromising on throughput or accuracy, making it suitable for continuous industrial operation.

Versatile Applications

Engineered to handle plates, tubes, and flange planes, the machine is perfect for metal fabrication, shipbuilding, construction, and machinery manufacturing. Its flexibility allows it to adapt to a range of drilling needs, increasing operational versatility for end-users.

FAQ's of Automatic CNC Plate Tube and Flange Plane Drilling Machine:

Q: How does the Automatic CNC Plate Tube and Flange Plane Drilling Machine ensure high precision?

A: The machine utilizes advanced CNC control systems that precisely coordinate the drilling process, minimizing human error and delivering consistently accurate results.

Q: What are the main features that distinguish this CNC drilling machine?

A: Key features include high-speed operation, low energy consumption, high precision, automated controls, and the ability to drill multiple material types like plates, tubes, and flanges.

Q: When should this equipment be used in a production setting?

A: This machine is ideal when your operations require rapid, repetitive, and precise drilling for metal components, especially where efficiency and high output are essential.

Q: Where is the Automatic CNC Plate Tube and Flange Plane Drilling Machine manufactured and distributed?

A: The machine is engineered and manufactured in China, and is available globally through a network of distributors, exporters, suppliers, and traders.

Q: What is the process for setting up and operating this CNC drilling machine?

A: Installation involves connecting the unit to an electric power supply, calibrating the CNC system according to material specifications, and programming the necessary drilling parameters.

Q: How does using this machine benefit manufacturers and suppliers?

A: By automating the drilling process, it reduces labor costs, increases daily production rates, and ensures high quality and consistency, enhancing overall operational efficiency.
