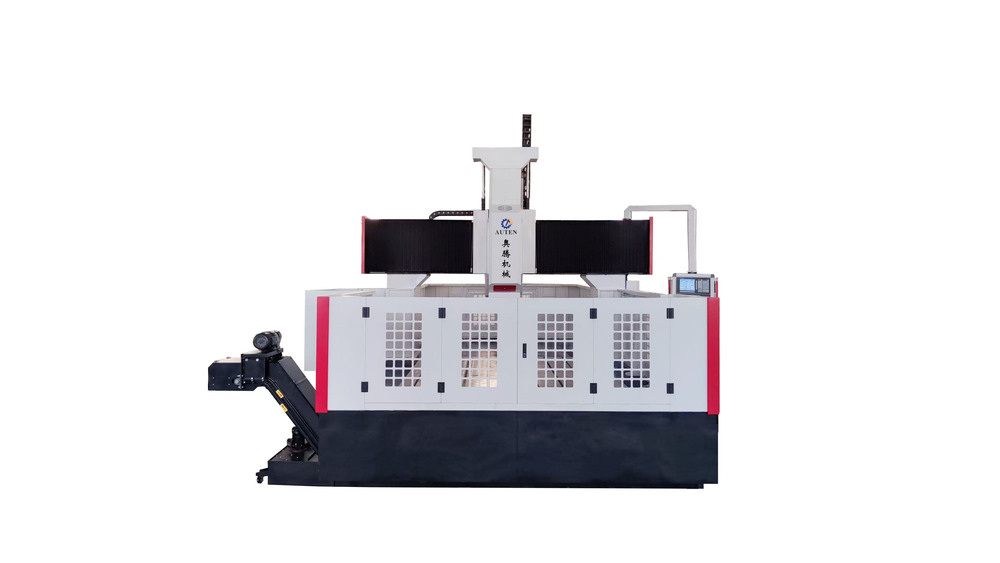

Send InquiryFactory Directly Sale CNC Plate Flange Drilling Tapping and Milling Machine: Model PHD2020
Price 91000 USD ($)/ Unit
MOQ : 1 Unit
Factory Directly Sale CNC Plate Flange Drilling Tapping and Milling Machine: Model PHD2020 Specification
- Product Type
- Factory Directly Sale CNC Plate Flange Drilling Tapping and Milling Machine: Model PHD2020
- Power Source
- Electric
- Feature
- Low Energy Consumption, High Speed, High Precision
- Warranty
- Yes
Factory Directly Sale CNC Plate Flange Drilling Tapping and Milling Machine: Model PHD2020 Trade Information
- Minimum Order Quantity
- 1 Unit
- Supply Ability
- 10 Units Per Day
- Delivery Time
- 30 Days
Factory Directly Sale CNC Plate Flange Drilling Tapping and Milling Machine: Model PHD2020 About
Applicationi14
The CNC gantry drilling and milling machine is mainly used for the drilling, chamfering, tapping, and milling of plate/structural parts with the thickness of flanges, discs, rings, plates and other workpieces within the effective range. Drilling through holes and blind holes can be realized on single material parts and composite materials. The processing process is digitally controlled and the operation is very convenient. It can realize automation, high precision, multiple varieties and mass production.
Specificationsi14
|
Workpiece size |
LxW |
2000x2000 mm |
|
Gantry height |
600 mm |
|
|
Workbench |
T-slot width |
28mm |
|
Drilling power head |
Qty. |
1 |
|
Spindle taper |
BT50-150 |
|
|
Max.drilling diameter |
i50 mm |
|
|
Max.thickness |
i160 mm |
|
|
Tapping diameter |
M3-M28 |
|
|
Spindle speed |
303000 r/min |
|
|
Servo spindle motor power |
22kW |
|
|
Distance from the lower end of the spindle to the worktable |
200-600mm |
|
|
Lateral movement of power head (X axis) |
Max.horizontal stroke |
2000 mm |
|
Lateral movement speed |
08 r/min |
|
|
Servo motor power for lateral movement |
2.4kW |
|
|
Gantry longitudinal movement (Yaxis) |
Max.feed stroke |
2000 mm |
|
Feed moving speed |
08m/min |
|
|
Feed servo motor power |
2x2.4kW |
|
|
Vertical ram feed motion (Z axis) |
Max.stroke |
400 mm |
|
Moving speed |
08 m/min |
|
|
Servo motor power |
2.4kW (Brake) |
|
|
Three-axis positioning accuracy |
X/Y/Z/A/B/C |
i0.015/1000mm |
|
Three-axis repeat positioning accuracy |
X/Y/Z/A/B/C |
i0.01/1000mm |
|
Machine weight |
/ |
About 11.5T |
|
Overall size |
LxWxH |
5300x3800x2700 mm |
Exceptional Efficiency and Low Energy Consumption
The PHD2020 CNC Plate Flange Machine is built to maximize productivity while minimizing power usage. Its electric power source ensures consistent performance and cost-effective operation, allowing manufacturers to meet production targets without excessive energy costs.
High-Precision and Versatile Machining
With advanced CNC controls and superior build quality, the PHD2020 delivers high-speed, accurate drilling, tapping, and milling on a variety of plate flanges. This versatility enables users to handle complex projects with ease and superior results.
FAQ's of Factory Directly Sale CNC Plate Flange Drilling Tapping and Milling Machine: Model PHD2020:
Q: How does the PHD2020 CNC Plate Flange Machine improve manufacturing efficiency?
A: The PHD2020 enhances efficiency through its high-speed operation and automated CNC controls, which allow for precise drilling, tapping, and milling with minimal manual intervention and reduced setup times.Q: What materials can be processed using the PHD2020?
A: This machine is designed to handle a wide range of plate materials used in flange production, including carbon steel, stainless steel, and aluminum, making it versatile for different fabrication requirements.Q: When should you consider using the PHD2020 in your production line?
A: The PHD2020 is ideal for manufacturers who require high-speed, high-precision machining of plate flanges, especially in industries like construction, petrochemical, and shipbuilding where reliability and quality are critical.Q: Where is the PHD2020 CNC Plate Flange Machine manufactured and supplied from?
A: This machine is produced and supplied directly from China, with availability through distributors, exporters, manufacturers, suppliers, and traders for both domestic and international markets.Q: What is the process for operating the PHD2020?
A: The PHD2020 utilizes advanced CNC programming to automate the processes of drilling, tapping, and milling. Operators input specifications through a user-friendly interface, and the system executes the machining tasks with precise accuracy.Q: What warranty and support are available for this machine?
A: The PHD2020 comes with a manufacturer's warranty, ensuring support for repairs and technical issues. Local distributors and suppliers also provide after-sales service to assist with maintenance and operation queries.Q: What are the main benefits of using this CNC machine for flange manufacturing?
A: Primary benefits include lower energy consumption, faster throughput, high accuracy, and reduced labor requirements, all of which contribute to significant cost savings and improved quality in production.
